Product Description

Centered reticle in second image plane

Amazon.com

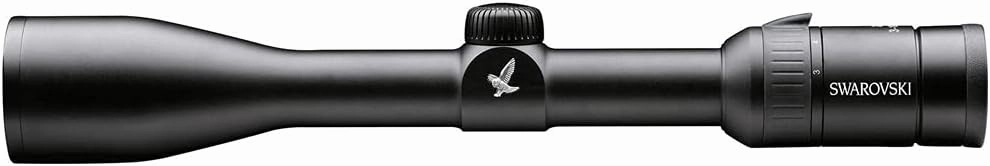

Compact and rugged, the Z3 3-10x42 Riflescope from Swarovski upgrades the time-tested AV-Line of scopes--offering high-precision optics in a streamlined model that is well suited to many hunting situations. Due to its shapely design, the Z3 3-10x42 can fit with a range of guns--with slim construction that allows it mount close to the barrel. This riflescope comes ready to shoot with a Plex aiming reticle and carries a limited lifetime warranty from Swarovski.

Optical System Features:

• 3x zoom in a 1-inch scope
• Large 6.3 to 2.2 degree field of view
• Centered reticle in the second image plane
• Rapid diopter adjustment
• Microstructure surface: precisely defined ribbing to prevent residual reflections inside the tube for bright, high-contrast images, even in intense light
• Improved anti-reflective lens coatings deliver the highest optical performance in all light conditions



  The riflescope features a Plex aiming reticle. Key Function and Design Features:

  • Main Tube: The rugged, one-inch, lightweight alloy main tube is finished with a tough anodized scratch resistant surface. The slim tube provides enough space for easy mounting.
  • Turrets: Large, rugged turrets feature distinctive adjustable clicks for accurate adjustments. The turrets are waterproof even when the turret caps removed.
  • Reticle Adjustment: The scope offers a wide range of adjustment for easy sighting in with precise adjustment of the reticle--shot after shot. The zero setting system offers precision adjustment of the point of impact without the use of tools.
  • Magnification Ring: The soft, wide ribbed magnification ring features a sure grip for accurate adjustment and allows quick adjustment of entire magnification range.
  • Eye Relief: The long 3.54 inch eye relief allows for comfortable concentration on the shot.

    Technical Specifications

    • Magnification: 3.3 to 10x
    • Objective lens: 42 millimeters
    • Exit pupil: 12.6 to 4.2 millimeters
    • Exit pupil distance: 90 millimeters / 3.54 inches
    • Field of view: 11 to 3.9 meters at 100 meters / 33-11.7 feet at 100 yards
    • Field of view: 6.3 to 2.2 degrees
    • Subjective field of view, apparent: 22.7 degrees
    • Dioptric compensation (diopter): 2, 5
    • Transmission (percent):>90
    • Impact point cord. per click: 7 millimeters at 100 meters / 0.25 inches at 100 yards
    • Maximum elevation/windage adjustment range: 1.4 meters at 100 meters / 50 inches at 100 yards
    • Parallax correction: 109
    • Objective filter thread: M 44 x 0.75
    • Length (approximate): 321 millimeters / 12.64 inches
    • Weight (approximate): 360 grams / 12.7 ounces
    • Central tube diameter: 1 inch
