- Trace telephone wire/LAN cable. Trace wire in electrical system. It can take place of cable teste
- Verify LAN cable condition. Continuity test. Cable Assignment Test and Cable State Testing (2-wire)
- Low Battery Indication with Bright white LED flash light. Rapidly find the target wire
- Find target wire on all types of connected operating Ethernet switch /Router/PC
- Identify the state in the working telephone line (clear ring, busy).Send a single solid tone
Descriptions:
1. Trace telephone wire/LAN cable
2. Trace wire in electrical system
3. Verify LAN cable condition
4. Continuity test
5. Low Battery Indication
6. Bright white LED flash light
7. Cable Assignment Test: Open, short and cross of LAN cable, 2-wire (RJ11)/4-wire (RJ45) telephone cable
8. Cable State Testing (2-wire)
a. Line DC detecting and anode, cathode determination
b. Ringing signal detecting
c. Open, short and cross testing
9.Find wire on all types of connected operating Ethernet switch/Router/PC terminal
10.Rapidly find the target wire from among plenty of telephone wires
11.Rapidly find the target wire from among plenty of network wires
12.It can take place of cable tester
13.Compare the volume of the "tout" sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator
14.Power: DC 9V battery（not include)
15.Working current: test: =10mA, receiver: =30mA
16.Signal transmission format: Multiple frequency pulse
17.Signal output electric status: 8VP-P
18.Distance of signal transmission: =3km
19.Material: ABS plastic

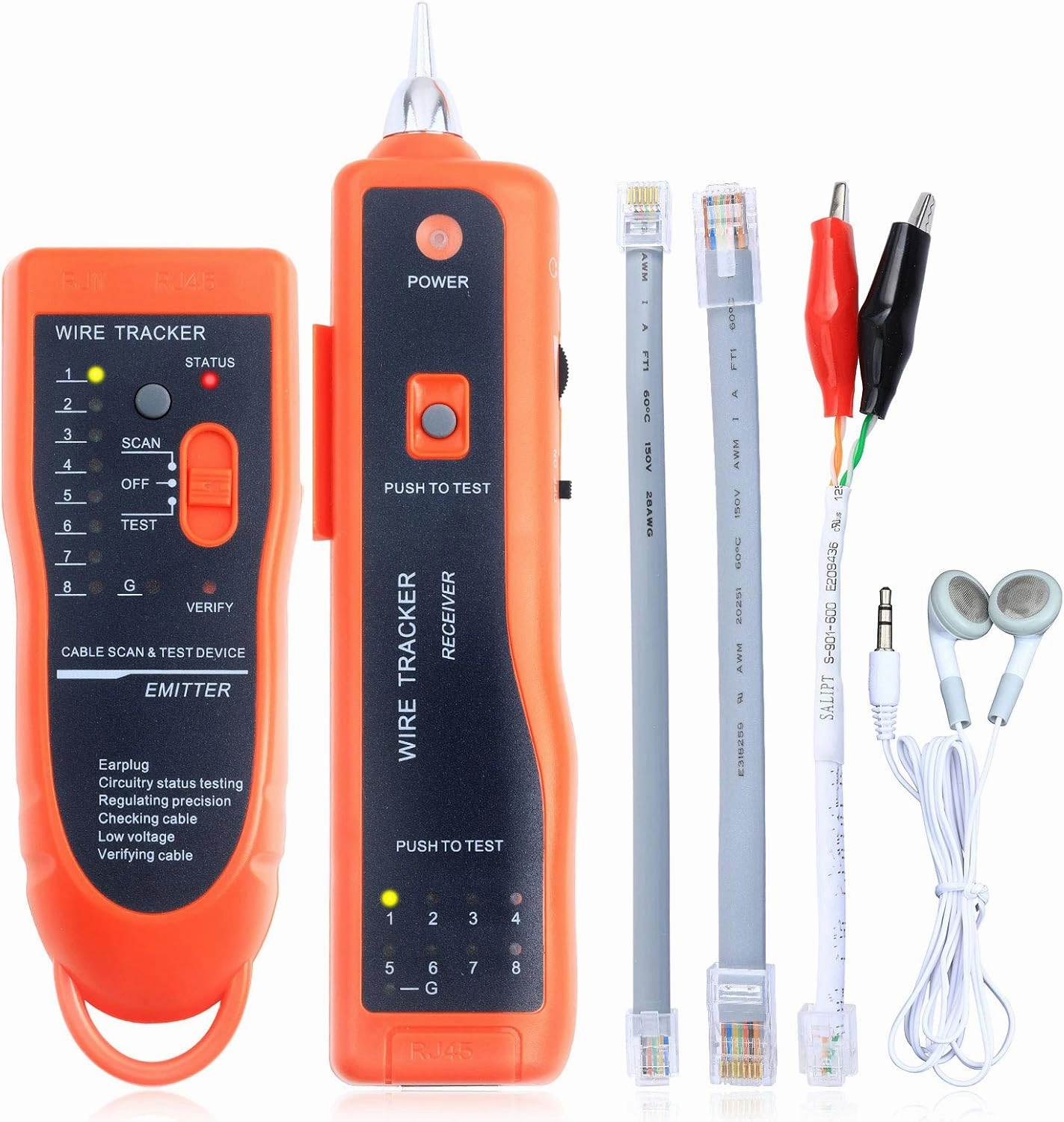

Package include:
1.1xEmitter
2.1xReceiver
3.1xEarphone(90cm)
4.1xRJ11 Telephone Cable
5.1xCable with Crocodile Clamp
6.1xRJ45 Network Cable
7.1xManual
8.1xBag
