- ● Runs Rotorflight 2.x Helicopter Control Software; ● Built-In FrSky FBUS-Capable Receiver (TW or AP Protocol)
- ● Robust CNC Aluminum Case, Functional Heatsink for MCU; ● STM32F722 Microcontroller for Power and Flexibility;
- ● Precision Barometer, 3-Axis Gyroscope and 3-Axis Accelerometer
- ● 128MB Blackbox Function for Tuning/Troubleshooting
- ● 9 Primary Main Header Pins for Flexibility and Power Distribution

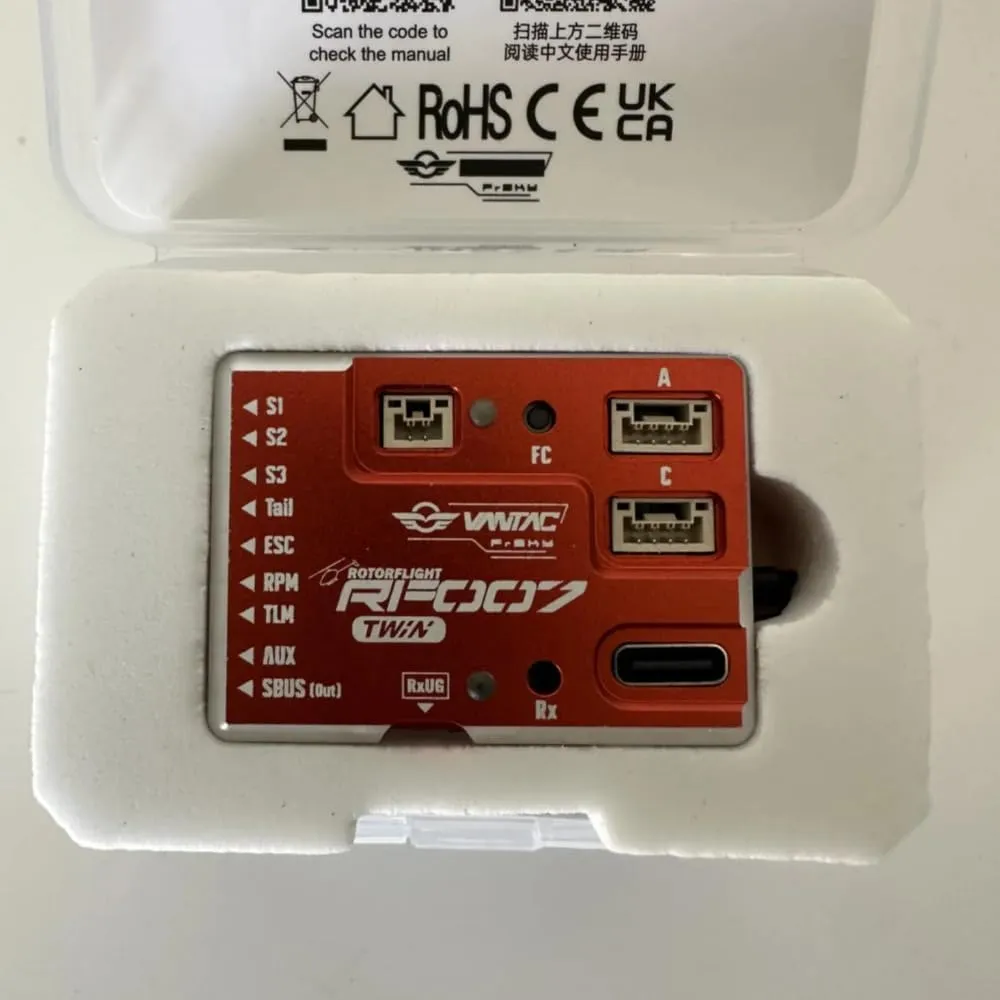

FrSky is proud to announce the launch of the VANTAC RF007, a cutting-edge flybarless (FBL) helicopter flight controller with a built-in FrSky receiver. Built upon RotorflighRotorflight 2's advanced flight control technology, the RF007 seamlessly integrates with ETHOS radios for intuitive configuration and real-time tuning, putting unparalleled control at your fingertips.
At its core, the RF007 is powered by an STM32F722 MCU, paired with an ICM42688P gyro/accelerometer and SPL06 barometer. For added performance insight, the RF007 includes a generous 128MB Blackbox for flight data logging, making it easier than ever to fine-tune and troubleshoot your setup.
The RF007 simplifies receiver integration with its built-in FrSky Archer or TWIN receivers, supporting the ACCESS/ACCST V2 and TW protocols respectively. For users with unique requirements, the RF007 also supports external receiver connections via its main header or two UART/I2C expansion ports. With 9 main header ports, the RF007 provides substantial flexibility to connect spare servos, glow ignitors, buffer/backup packs, or other auxiliary equipment, ensuring maximum convenience for a variety of setups.
The RF007 leverages ETHOS' powerful telemetry connectivity, offering a streamlined and user friendly Lua-based interface for tuning and programming directly from your FrSky transmitter. Adjust PIDs, servo trims, rates, mixing, filter settings, and more — all from the convenience of your radio screen. Even ESC configuration is supported for select ESCs, making the RF007 an all-in-one solution for advanced helicopter pilots.
This product would not have been possible without the dedicated efforts of the ROTORFLIGHT technical team and volunteers, whose expertise and rigorous testing have brought the RF007 to life.
Experience the future of FBL helicopter flight control with the FrSky VANTAC RF007. Testing and final checks are coming to a close, and availability is expected soon. Stay tuned for updates!
*** Specifications:
● Flight Controller Firmware: Rotorflight 2.x
● Dimension: 43.5×31.2×13.7mm
● Weight: 25.2g
● Receiver Options:
- RF007 ARCHER : Built-In 2.4G Archer Plus RS Receiver
- RF007 TWIN: Built-In Dual 2.4G TW R6 Receiver
● Operating Voltage Range: 5-16V
● Operating Current (FC Only): 125mA@5V
● Voltage Measurement Range via AIN (External device): 0-80V
● RxUG Port: For Upgrading Internal RX Firmware (In case of OTA upgrade failure)
- Note: When powering this RxUG port, do not introduce additional power input from other ports to ensure the safe operation of the connected devices.
● MCU: STM32F722RET6
● Gyroscope (IMU): ICM-42688P
● Barometer: SPL06-001
● Blackbox Flash: 128MB
● Servo Ports: Servo 1, Servo 2, Servo 3, Tail
● ESC Ports: ESC (Throttle), RPM (Sensor), TLM (ESC Telemetry or other functions)
● Other Ports: AUX and SBUS Out/In
● Expansion Ports: Port A, C, and RxUG
*** Package Included:
VANTAC RF007 Archer Plus Flybarless
USB-C to A Cable
JST Cable Wire
Firmware cable
Double-side tape
Manual
